40 L/minMaximum Flow Rate
In partnership with
HD580 Agricultural Drone
HD580 V80

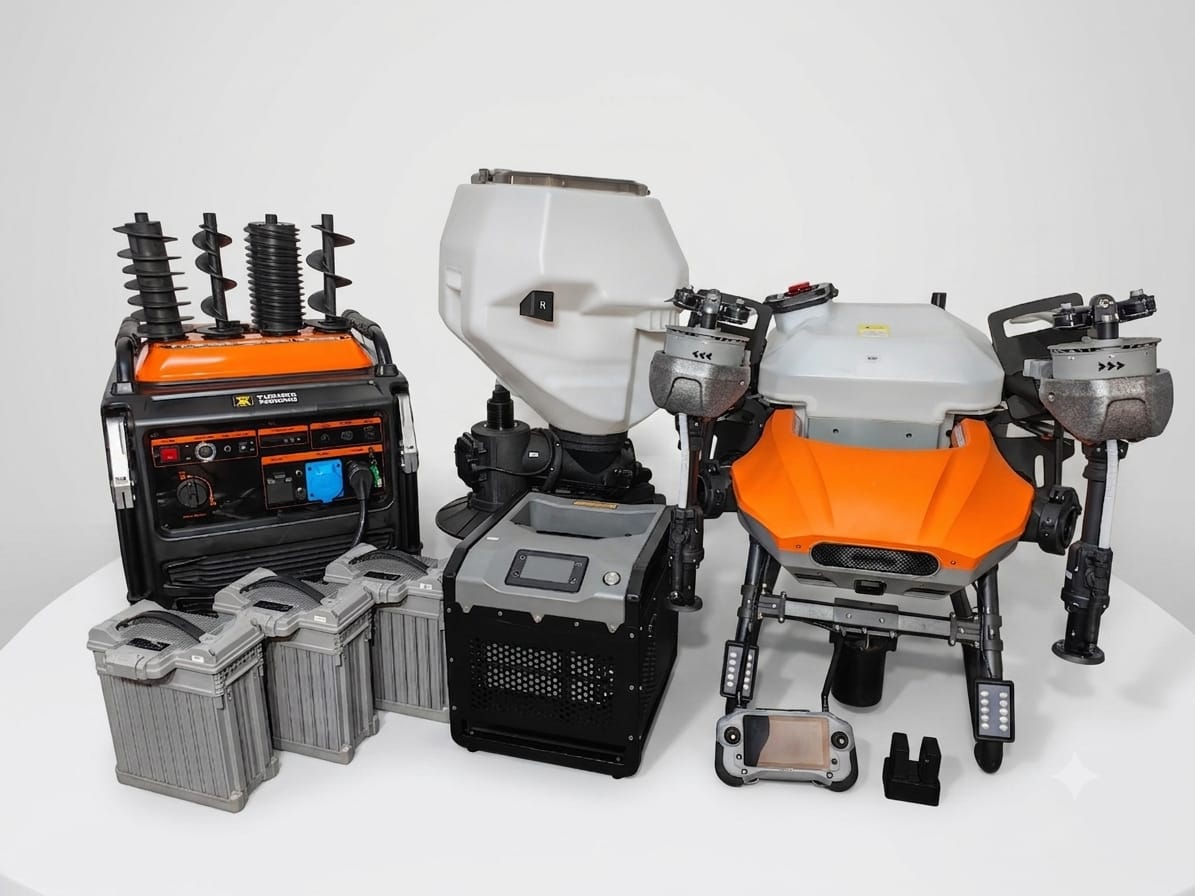

Complete field-ready system
Aircraft, spreading tank, smart charger, smart batteries, multifunction remote controller, RTK marker, and mobile RTK station for professional agricultural work.
HD580
Drone Specifications
Design Highlights
Built for fast field operation

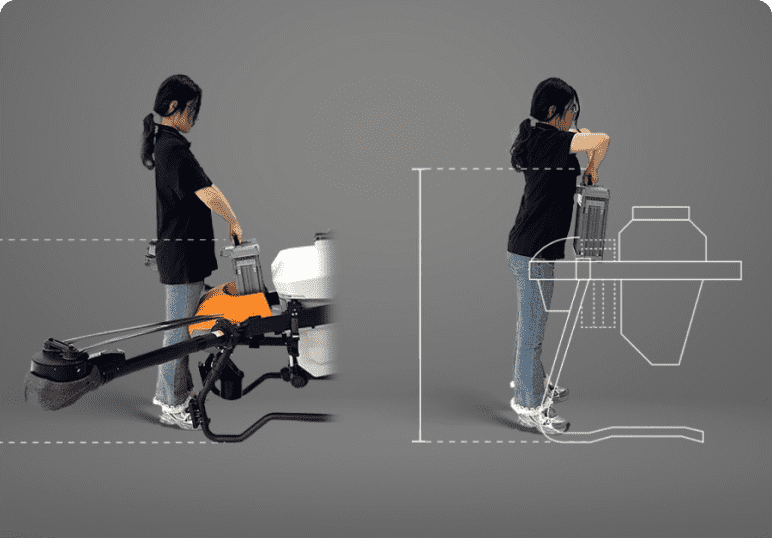

Reduced Height for Easy Replacement
A lower operating height keeps battery and tank swaps quick during busy spray windows.

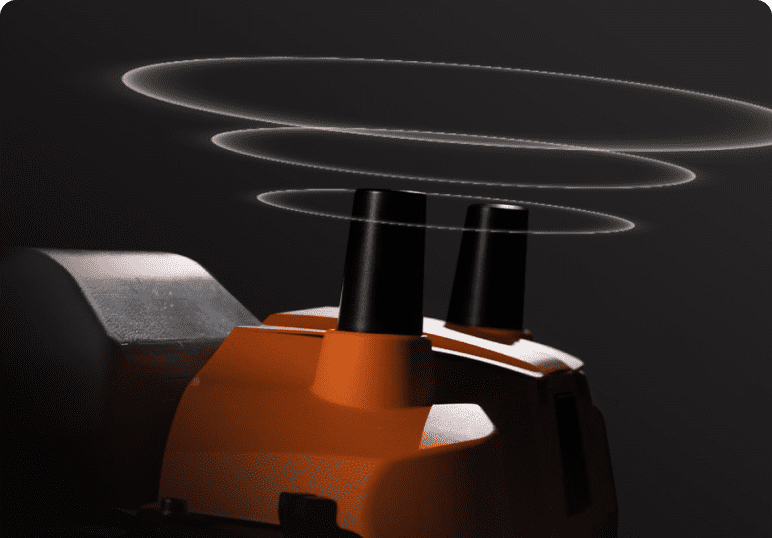

Clear RTK Reception Space
The aircraft layout keeps RTK reception clear for confident positioning in open fields.

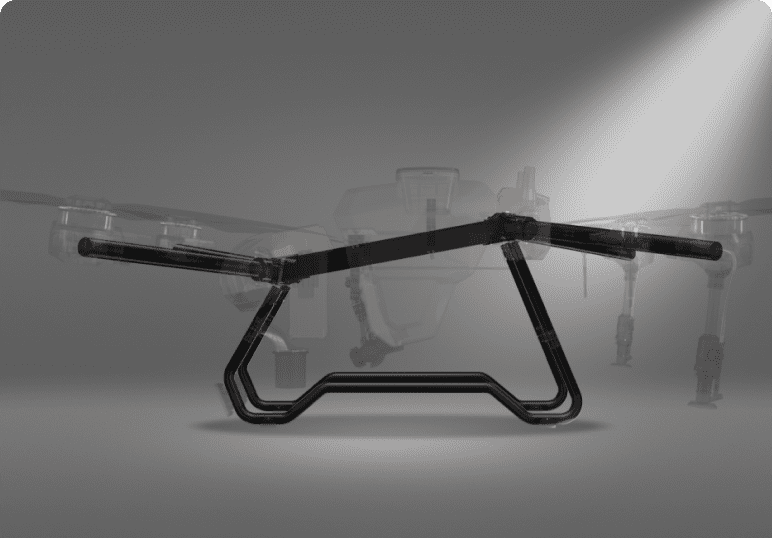

Inclined Four-Axis Structure
The inclined arm structure supports stable flight and balanced spray coverage.

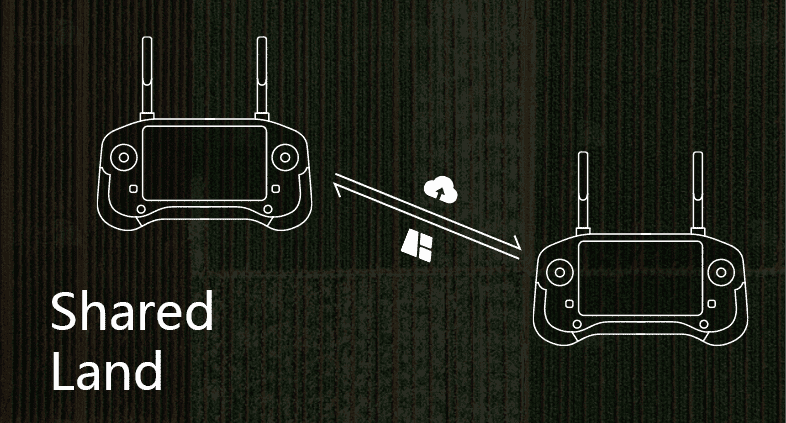

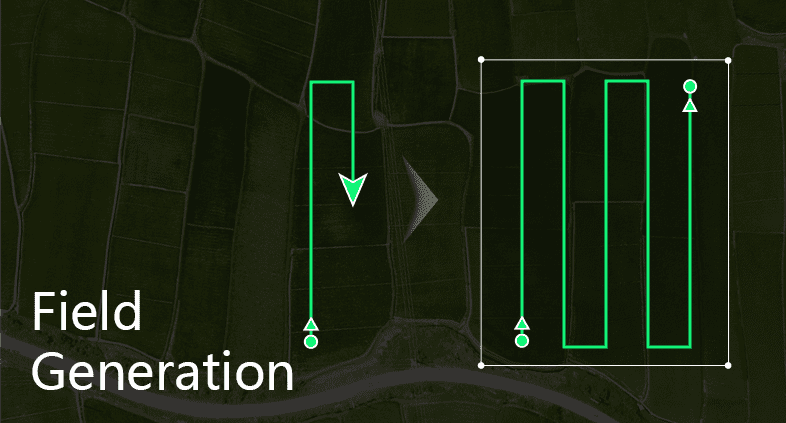

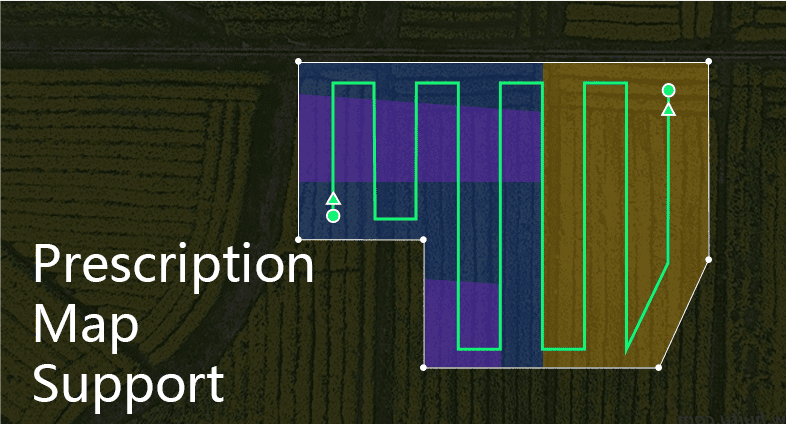

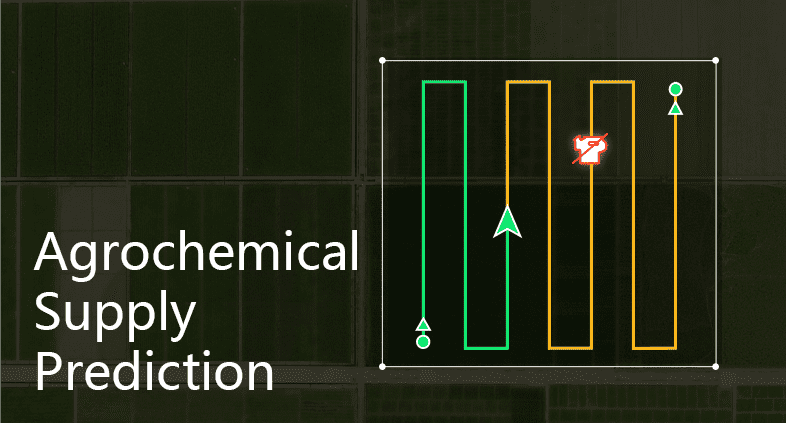

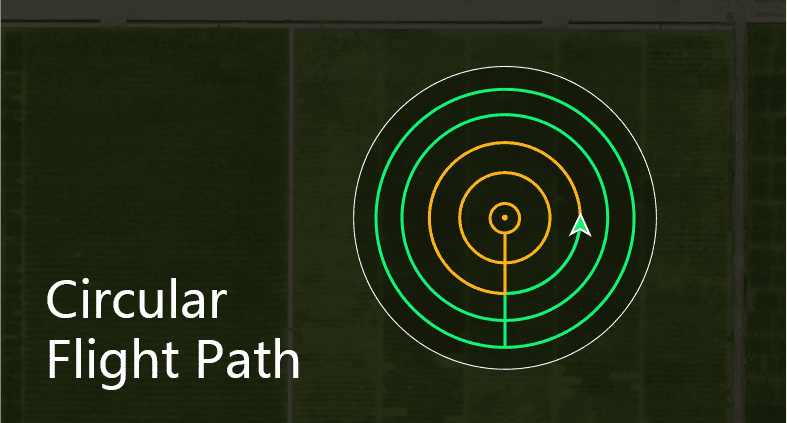

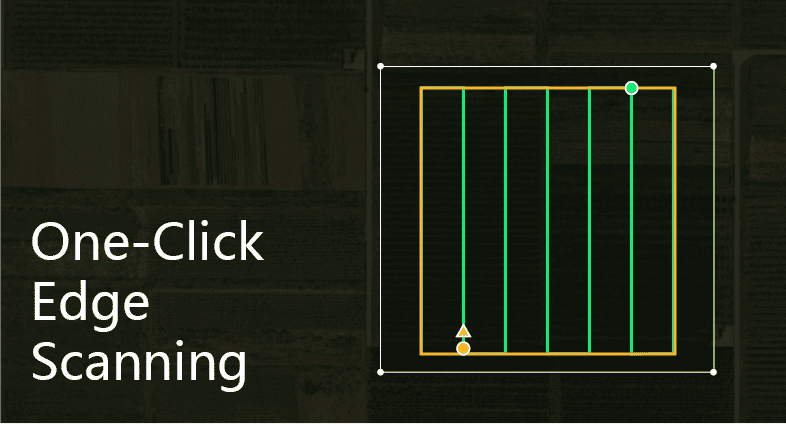

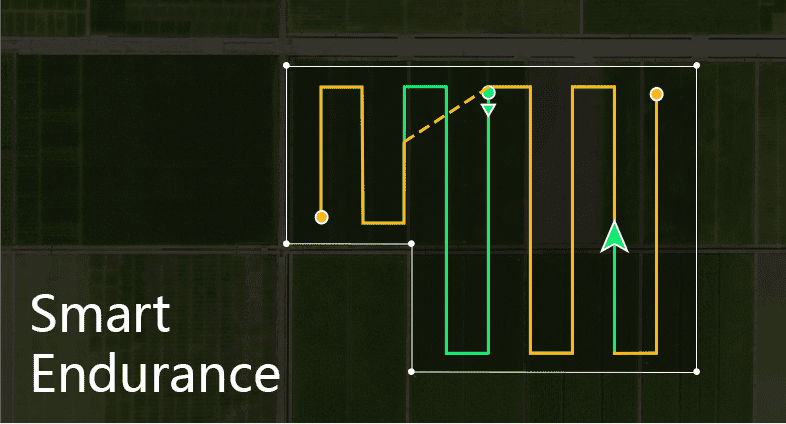

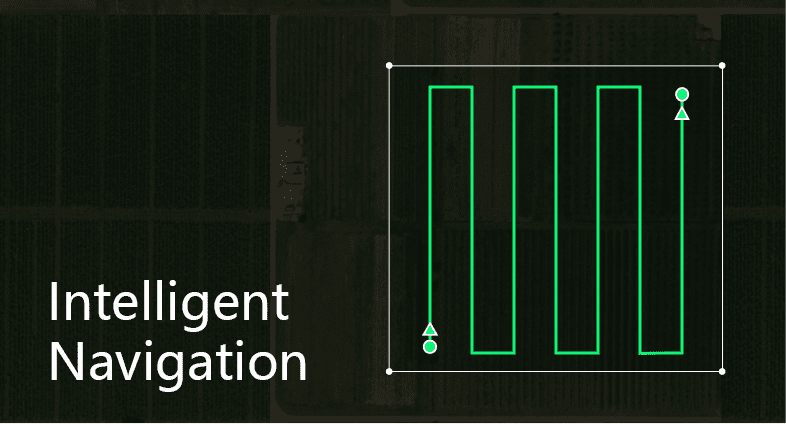

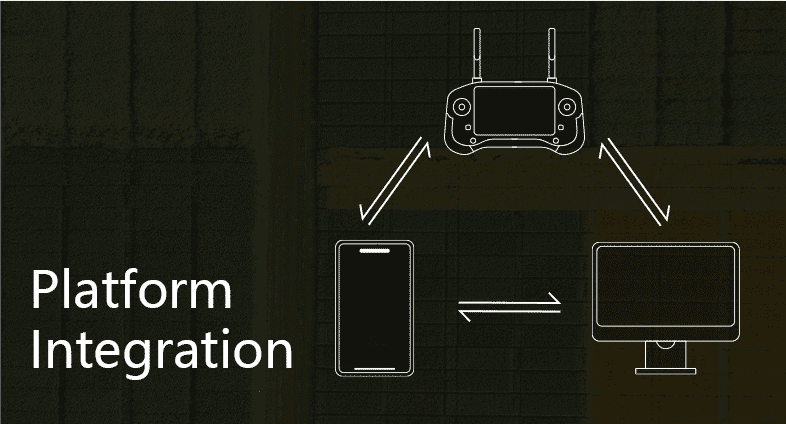

Intelligent Route Planning
Planning tools for practical crop work

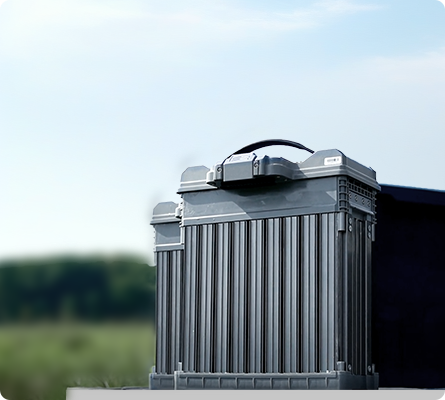

Energy System
Quick battery exchange and smart charging help operators keep the aircraft moving during demanding spray days.32AhBattery capacity

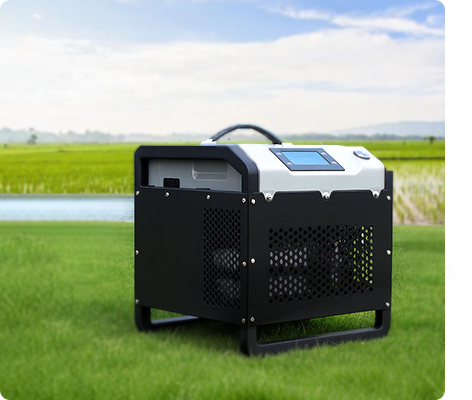

9kWSmart Charger
IP67Dustproof and Waterproof

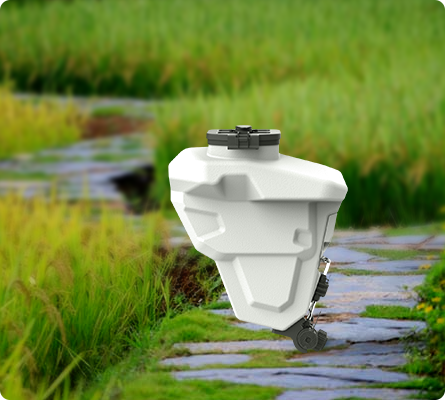

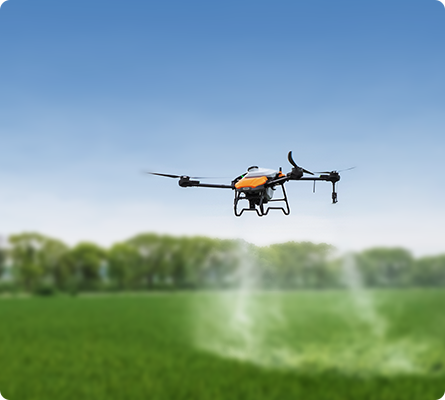

Spraying System
High-flow spraying hardware delivers consistent coverage across broad crop rows with a practical tank layout for field operation.≥300 hoursUltra-long Lifespan

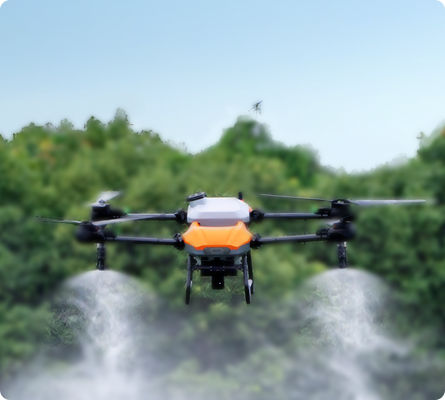

40 L/minMaximum Flow Rate With Optional 4 Nozzle Configuration
50-500 micrometersDroplet Size

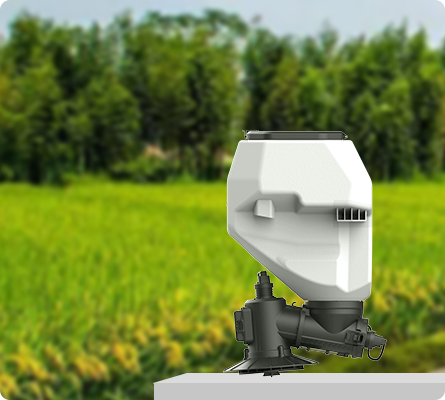

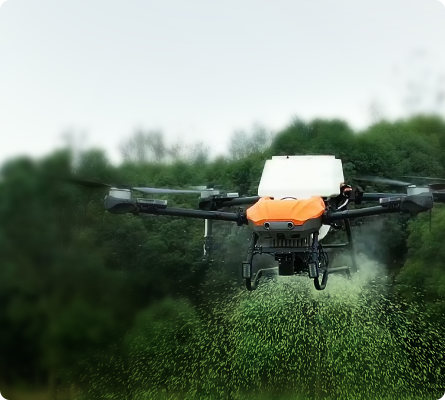

Spreading System
Granular application support for fertiliser, seed, and similar field materials with a large-capacity tank and strong output.100LSpreading Tank Capacity
80 kgMaximum Load
300 kg/minFlow Rate
Flight Control System
Integrated flight control supports stable operation, intelligent route execution, and reliable close-crop handling.High Integration
Multi-Redundancy
IP67
Remote Controller
A dedicated interface for planning, monitoring, mapping, and managing HD580 operations from the field edge.6-inchHigh-Resolution Touch LCD Display
RemovableExternal Batteries
RTKMapping Device
Vision System
Vision tools improve operator awareness around the aircraft during day-to-day field work.120 degUltra-Wide Angle Lens
ElectronicStabilization
VirtualGimbal
Dual 75W Lightsfor Clear Vision in Night Operations
Perception System
Sensing support improves awareness and helps the aircraft work more safely in complex field environments.≥95%Effective Sensing
≥50mRadar Detection Range
≤36 km/hObstacle Avoidance Flight Speed
