14-inch Display Terminal
1920 x 1080 Full HD with an ultra-narrow bezel for a clear in-cab operating view.
In partnership with
HD818 Auto Steering System
Beyond guidance, driving intelligent agriculture
HD818
Autosteer built around the full field operation
All-new Steering Wheel
Ergonomic steering control with an optional assist lever for lighter field operation.
Positioning Signals
Supports Radio, Ntrip, Galileo HAS, B2b-PPP, and L-band correction options.
Cloud-platform Data Exchange
Designed for data exchange with HD Digital Agriculture Platform workflows and Vector AGR devices.
Visual Guidance
Guidance support for the full cycle of field operations, from preparation to harvest.
ISOBUS
Plug-and-play implement connectivity for compatible monitoring and control functions.
Dual-camera System
Displays two camera feeds at the same time for broader in-cab monitoring.
Spraying Control System
Ground-speed-based section control with overlap prevention during autosteering.
Cab Interface
14-inch Display Terminal
A high-brightness full-HD terminal gives the operator a clear view of guidance, implement control, maps, and field information in one interface.14-inchLarge display
1920 x 1080Full HD resolution
800 nitsHigh-brightness backlight
IP67Ingress protection
8 + 64GBMemory and storage
8-core CPUProcessing platform
All-new Steering
Steering and Motor System
The steering interface is built for long field sessions, with steer-ready integration that avoids extra hydraulic retrofit work on supported tractors.Steer-readyPlug-and-play support
No retrofitNo hydraulic add-on required
0.1-25 km/hWide operation range
Assist leverOptional steering aid
ErgonomicLighter operator control
Implement Integration
ISOBUS UT/TC Control
ISOBUS support connects compatible implements with the HD818 terminal, helping operators monitor work, manage job data, and reduce overlap.UTCross-brand plug-and-play
TC-BASOperation data and ISOXML upload
TC-SCOverlap-free section control
TC-GEOPrescription-map variable-rate control

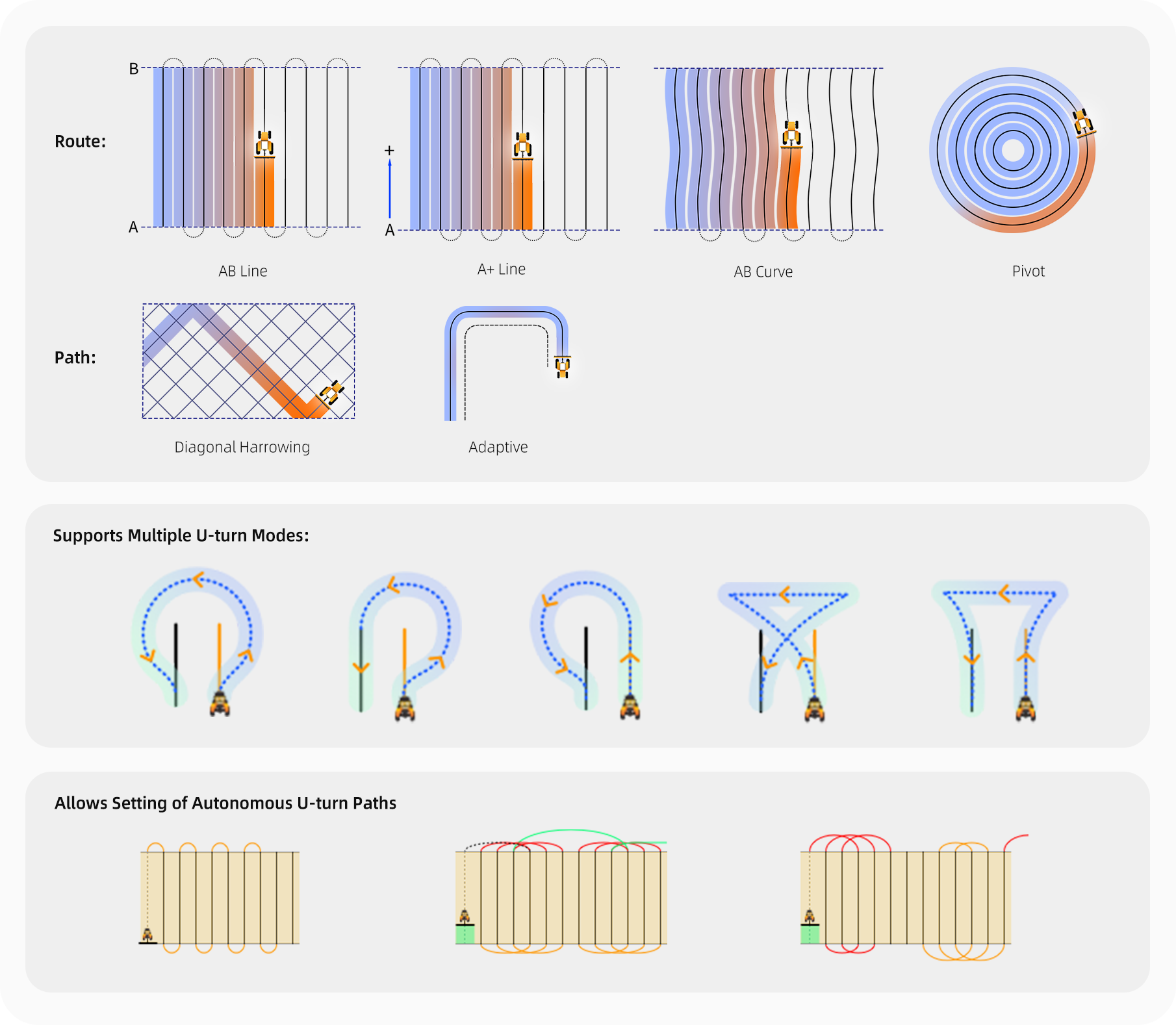

Operation Modes
Comprehensive features for diverse field conditions
Rich operation modes for all scenarios
The HD818 is compatible with a wide range of agricultural machinery and speed ranges, supporting practical operation modes for different terrain and field conditions.
Radio RTK supportedNtrip supportedSBAS / B2b-PPP / Galileo HAS supportedGlobal L-band correction optional
End-to-end Workflow
One guidance platform across the crop cycle
Field preparation
GPS land levelling support for accurate preparation passes and repeatable field setup.
GPS land levellingUp to 6 hydraulic valve control outputs
Configuration
Standard package and optional upgrades

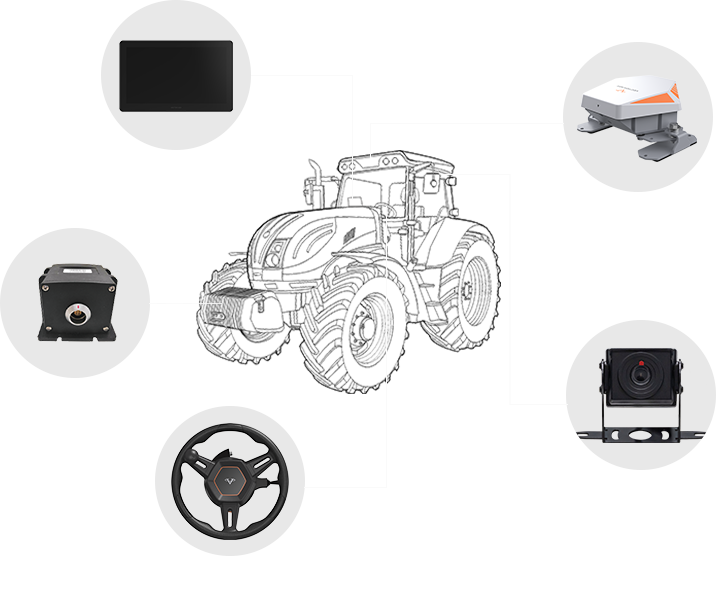

Standard Configuration

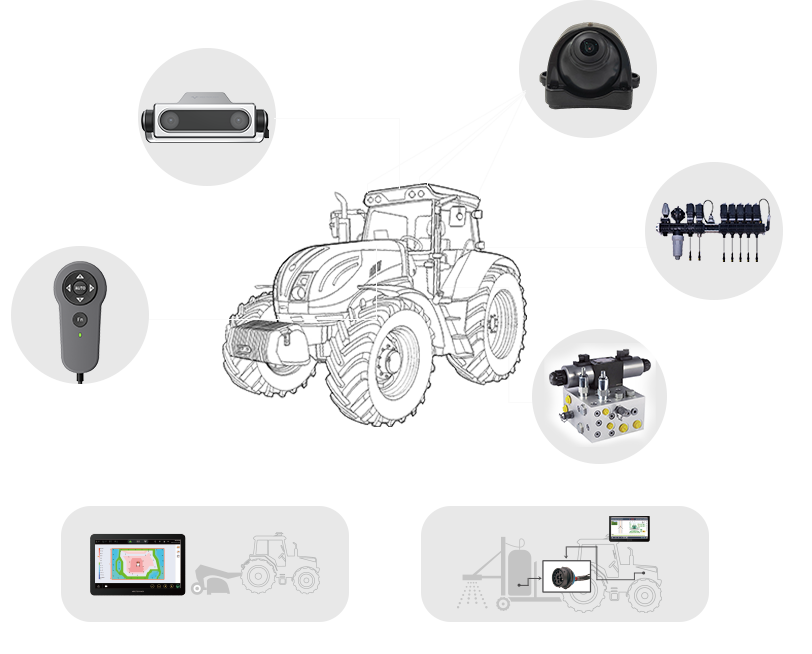

Optional Upgrades
HD818 Resources
